1746978-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1746978-1
Datasheet:
Description:

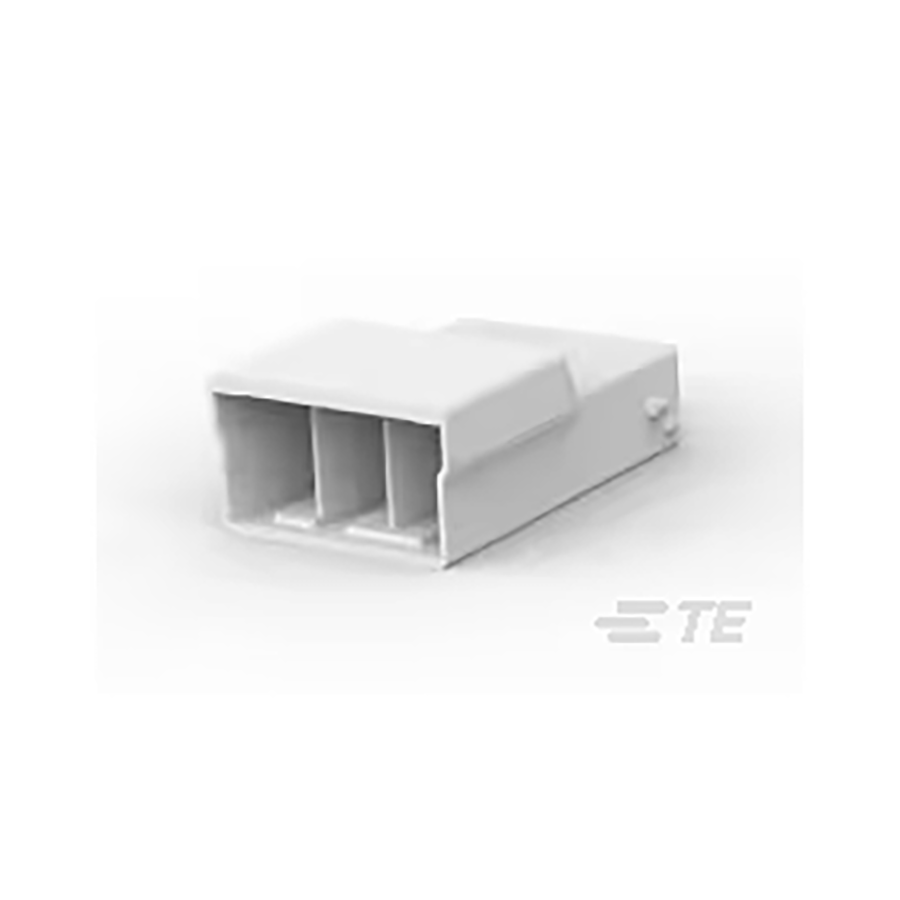

Headers and Wire Housings Cable Housing Number of Positions:3 Pitch:6.1976 mm
| Parameter | Value |
|---|---|
| Length | 20.363688 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 11.7 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Pitch | 6.1976 mm |
| Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Housing |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Connector System | Wire-to-Wire |
| Housing Color | Natural |
| Mating Post Length | |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length |
Stock: 989
Distributors
pcbx
pcbxUnit Price$0.12682
Ext.Price$0.12682
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12682 | $0.12682 |
| 10 | $0.12561 | $1.25610 |
| 50 | $0.12442 | $6.22100 |
| 100 | $0.12241 | $12.24100 |
